Plan 74 - Dual gas seals - Pressurised barrier gas system for dual gas seals

Features

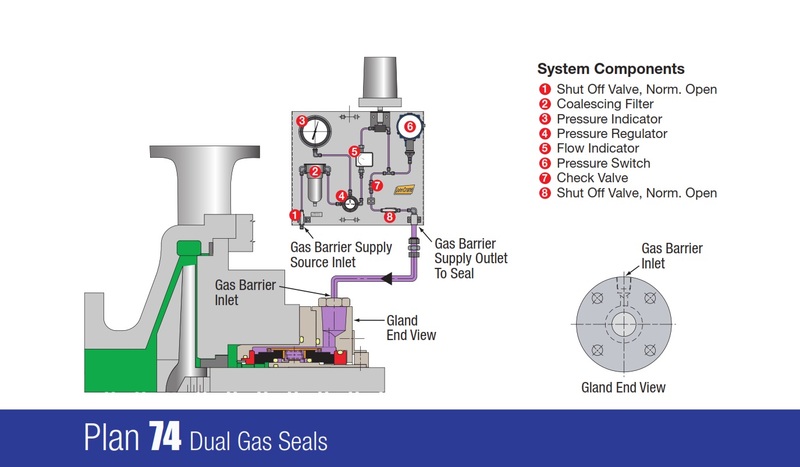

Description: Plan 74 provides a pres- surized gas, typically nitrogen, to dual gas seals through the use of a control panel that removes moisture, filters the gas, and regulates the barrier pressure.

Advantages: Lower costs and maintenance than systems used on dual pressurized liquid systems. Leakage to atmosphere is an inert gas.

General: The barrier gas is usually a pressurized nitrogen line. For higher pressure applications the system pressure can be supplemented with a gas pressure booster/amplifier. Typically dry-running, non-contacting, gas lubricated seals are used with this plan.
